SIGINT, ELINT & COMINT

There are many classifications of between different types of antenna communications and intelligence gathering disciplines. In this post, we explain the key distinctions between SIGINT, COMINT, and ELINT.

SIGINT is the abbreviation for “Signals Intelligence.” SIGINT encompasses all intelligence-gathering methods that it involve the interception of signals. While SIGINT’s origins can be traced back to the early 1900s, it became more prominent in World War I, and even more so in World War II. Among other means of information, SIGINT utilizes unmanned aerial vehicles (UAVs), which gather and transmit back raw intelligence for analysis.

Communications Intelligence, or “COMINT” is a sub-category of SIGINT. COMINT describes communications between people and/or groups. Voice interception, text interception, and signaling channel interception are all categorized under COMINT.

COMINT’s main distinction from ELINT is that COMINT signals do contain speech or text, whereas ELINT does not.

Electronic intelligence, or “ELINT” is another sub-category of SIGINT, which considered “non-communications intelligence-gathering.” ELINT systems primarily use electronic signals to gather intelligence. These systems identify signals by either matching them to known criteria, or recording them as possible new, unique, emitters. ELINT data is usually highly classified and therefore, secured.

JEM Engineering’s JEM-0221A is an ultra-wideband omnidirectional antenna that delivers excellent aperture efficiency. It is exceptional for SIGINT, and broad spectrum monitoring of RF signals. JEM Engineering has an extensive product catalog of antennas and antenna systems suitable for SIGINT applications, many of which are also flight-qualified.

The third sub-category of SIGINT is FISINT. FISINT stands for Foreign Instrumentation Signals Intelligence. Not to be confused with ELINT, FISINT refers to the collection of signals created by the testing and use of foreign weapons systems, such as foreign aerospace, surface, and subsurface systems.

Antennas for Maritime Applications

In this post, we will answer some of the most common questions regarding marine antennas.

What makes an antenna suitable for maritime applications?

Perhaps the most obvious answer is that the antenna has to be essentially waterproof. Any antenna that is put on a boat must be “marinized,” meaning that it must be optimized or modified for marine use. Any active or electronic elements such as PCBs, for example, must be insulated and protected against water and weather, as well as enclosed in a plastic or corrosion-resistant metal.

What kinds of antennas are most typically found on a boat?

Normally, the number of antennas on a single vessel would be proportional to its size. To put simply, the bigger the boat, the more receiving and transmitting devices it will need. Besides the basic AM/FM antenna radios and WiFi, it is important for modern boats of all sizes to have a GPS system. Additionally, VHF (very high frequency) antennas are necessary for the vessel to transmit and receive signals. Sometimes, especially in cases where it is crucial to avoid misinterpretation of data, boats have to transmit the data digitally using DSC.

DSC, or digital selective calling, is an integral part of a boat’s GMDSS (Global Maritime Distress Safety System) station. MF/HF/VHF transceivers use the DSC to transit a signal digitally. These signals can include identification data, such as coordinates and MMSI (Maritime Mobile Service Identity), a mandatory identifier for ships subject to the GMDSS system.

Multi-band antennas can also be used at sea to amplify the signals from handheld devices. Blade antennas can also be used as radar (Radio Detection and Raging) devices. Radar antennas are especially important in maritime applications because it allows the user to avoid collisions by mapping out the coastline, as well as detecting other vessels even in poor visibility.

What is an AIS Transponder?

AIS stands for Automatic Identification System. Its purpose is to primarily avoid collision by monitoring the position of other AIS-equipped boats in the surrounding area, as well as other information such as the boats’ speed, course, name, type, size, and MMSI. AIS transponders operate within VHF, with a range between 10 and 30 miles, typically. AIS transponders are categorized in two classes: A for ships and fishing vessels, and B for recreational vessels.

Are antennas with higher gain better for marine use?

Not necessarily. In a previous post, we described gain (dB rating) as a measurement that combines the antenna’s efficiency with its ability to receive energy better from a particular direction. Essentially, a higher dB results in a more focused signal. When a signal is more focused in one area, in other areas, the signal will be weaker. The signal strengths of the vessel’s antennas should account for how much the vessel will rock.

How high should the antenna be mounted for it to work effectively?

Generally, the rule of thumb is that the higher the antenna is mounted, the further it can transmit. The antenna’s line of sight needs to be taken into account in addition to it’s actual transmission range.

How can I determine the best antenna for my nautical application?

The best way to find the ideal solution for your application is to consult with experts. Not only does JEM Engineering’s team specialize in antenna development, our existing products are modifiable to our clients’ specification. Additionally, we offer antenna testing services, which can be performed on-site, as well as remotely. To learn more about our rapid testing capabilities, please refer to An Intro to RF Testing.

Narrowband Vs. Wideband

In Antenna 101: Types and Applications, we briefly introduced narrowband and wideband antennas, as well as enumerate examples of antennas that fall under either category. In this post, we will be making some general comparisons between narrowband and wideband communications.

Narrowband refers to radio communications whose signal bandwidth is within the coherence band of a frequency channel.

This means that in narrowband communications, bandwidth of the signal does not significantly exceed the coherent bandwidth of the frequency channel. Narrowband antennas are typically used in many applications that heavily depend on achieving reliable links in different operating environments, such as in handheld and manpack military radios, as well as ISR. They are also used for other shorter-range, fixed-location civilian applications, such as radio-frequency identification (RFID) and commercial vehicle remote keyless entry (RKE) devices.

Wideband refers to broadband communications that use a relatively wide range of frequencies.

Wideband radio channels’ operational bandwidth may significantly exceed the coherence bandwidth of the channel. Generally, the bandwidths over which wideband antennas operate are higher than 1 octave, whereas narrowband antennas operate over bandwidths lower than 1 octave. In addition to ISR, wideband antennas are suitable for SIGINT and EW. JEM Engineering produces wideband antennas in a variety of forms, including spirals, log-periodic antennas, dipoles and Vivaldi notch elements.

Here are some key differences between the two…

Overall complexity. Narrowband systems are comparatively less complex than wideband systems, which require a more diverse network of circuits and stages.

Frequency spectrum. The frequency spectrum of narrowband antennas is divided into as many channels as the frequency allows. In contrast, for wideband antennas, either a significant portion or the entirety of the frequency spectrum is available to its users.

Channel-to-channel isolation.  For narrowband systems, transmitted energy can be concentrated on a smaller portion of the spectrum. As a result, channel-to-channel isolation is higher for narrowband antennas, compared to wideband antennas.

Signal strength. In narrowband systems, signals fade uniformly across frequencies. That being said, adding more frequencies will not strengthen the signal. On the other hand, different parts of wideband signals will be affected by the differing frequencies. In general, the signal weakens as the frequency band widens, making it more difficult to send and detect wideband signals.

Signal interference. One of the main benefits of having a smaller signal bandwidth (narrowband) is that the probability of overlap with interfering signals is relatively lower. The larger the bandwidth (wideband), the higher the probability of interference. This means that wideband communications require more filters in order to achieve a higher signal-to-interference-plus-noise ratio (SINR). A class of signal processing, a filter is a device or process that removes some unwanted “noise” from a signal.

Operating power. Narrowband channels have lower operating power requirements, making them preferable for applications that require transmission of limited information over relatively short distances. The tradeoff for wideband channels being able to carry more information over further distances is that they require significantly higher operating power. Also, a wideband channel’s higher operating power helps overcome the higher levels of signal interference previously mentioned.

Data rate. Narrowband systems typically have lower data rate transmissions, whereas wideband systems support relatively higher data rate transmissions. To put simply, wideband systems allow for faster communication.

In summation, narrowband and wideband antennas are suitable for different applications due to their strengths and weaknesses. Our antenna engineers at JEM Engineering specialize in developing the optimum solution for your intended application.

Dipoles: The Simplest, Most Common Antenna

As it’s name suggests, in its basic form, a dipole antenna consists of two conductive elements, unlike a monopole antenna, which has a single conductive element.

The dipole’s identical conductive elements (usually rods or metal wires) sit on either end of the antenna. While separated by a strain insulator, the center-facing ends of these two antenna sections are connected to a feed line or coaxial (RF) cable, which carries current in both the conductors. These currents are equal in magnitude but opposite directions, linking the radiating fields within the cable, and causing the fields to cancel each other out.

The current is maximum and voltage is minimum at the center of the dipole antenna. In contrast, the current is minimum and voltage is maximum at the ends of the dipole antenna.

The radiation pattern is perpendicular to the conductor of the antenna. This means that the dipole antenna radiates energy out into the space, perpendicularly to its axis.

There are many kinds of dipoles, but in this post, we will only describe two variations. A half-wave dipole, also known as a doublet, or the Hertz antenna, is the most commonly used type of dipole antenna. The length of its conductive elements is approximately half of the maximum wavelength (λ/2, the distance between two consecutive maximum or minimum points) in free space at the frequency of operation. A half-wave dipole’s current distribution is that of a standing wave, approximately sinusoidal (having the form of a mathematical sine curve) along its length.

short dipole is a dipole formed by two conductors with a total length that is significantly shorter than a half wavelength. For applications where a full half-wave dipole would be too large, short dipoles are more suitable. In a short dipole antenna, the feed impedance increases and its response is less dependent upon the frequency changes. The current distribution in the short dipole antenna is almost triangular. The radiation pattern of the short dipole antenna is circular, whereas the current distribution of a half-wave dipole is more oval in comparison.

While dipoles can be used standalone low-gain antennas, they can also be incorporated as driven elements in antenna designs such as the Yagi antenna and driven arrays.

They can be used to feed more elaborate directional antennas such as a horn antenna, parabolic reflector, or corner reflector. Additionally, engineers analyze vertical (or other monopole) antennas on the basis of dipole antennas of which they are one half.

JEM Engineering has experience designing dipoles suitable for HF, VHF, and UHF.

For example, the BCA-620 is a broadband dipole blade optimized for intelligence, surveillance and reconnaissance (ISR), as well as signal intelligence (SIGINT) applications, operating within frequencies from 600 to 2000 MHz.

Anatomy of a Vivaldi Antenna

In a previous post, we briefly introduced broadband antennas and their various types. In this post, we will further discus one particular type of broadband antenna: the Vivaldi antenna.

The Vivaldi antenna, also known as a tapered slot antenna (TSA), is a type of linear-polarized planar antenna invented by Peter Gibson in 1978, who originally called it the Vivaldi Aerial.

A slot antenna, made from a metal ground plane, is named for the one or more holes or “slots” cut out of it. When the plate is excited by a radio frequency current, electromagnetic waves radiate from the slot. A Vivaldi’s upper frequency is limited by the width of the gap, while the lower frequency is limited by the size of the opening. The shape and size of the slot also determines the antenna’s radiation pattern. The Vivaldi antenna is referred to as a tapered slot antenna because its symmetrical radiating elements taper outward from its slot line.

Vivaldi antennas are usually fabricated from a solid piece of sheet metal like thin copper sheets, a printed circuit board, or from a dielectric plate that is metalized on one or both sides.

A simple Vivaldi incorporates a “feed line,” usually a coaxial cable that would connect the antenna to its radio transmitter or receiver via an RF connector.

The Vivaldi’s broadband characteristics make them suitable for ultra-wideband (UWB) signals.

To put briefly, UWB refers to a technology for transmitting information across a wide bandwidth over 500MHz. UVB applications include radar imaging, precision locating, and sensor systems.

Vivaldis also provide a number of other advantages. In addition to providing high peak value for the pulse envelope during radar applications, Vivaldi antennas are also useful for impedance matching. Also, similar to log periodic antennas and fractal antennas, Vivaldis can be scaled for use at any frequency. Additionally, they are characteristically low-profile due to their flat construction.

A dual-polarized Vivaldi is comprised of two coplanar horizontal and two coplanar vertical elements arranged into an array that is symmetric around its axis. These elements are driven with equal phase and amplitude excitation, allowing the antenna to achieve a broadside pattern.

JEM Engineering boast nearly two decades of experience in designing flight-qualified Vivaldi antennas suitable for our clients’ specific requirements.

At our in-house rapid prototyping facilities, we manufacture cutting-edge antenna products and deliver custom solutions. In addition to our two testing chambers, we employ a variety of high-tech tools to support that mission. Our customers also get the added benefit of working with the same testing partners who help us qualify our antennas.

Introduction to Biconical Antennas

In a previous post, we briefly explained that broadband antennas are antennas that operate over a wide band of frequencies, or “bandwidths,” higher than 1 octave. We also explained that broadband antennas come in a variety of forms. In this post, we will discuss a particular type of broadband antenna: the biconical antenna.

The phrase “biconical antenna” describes a broadband antennas that are made up of two roughly conical conductive objects, that are nearly touching at their points. Because of their configuration, they can also be referred to as “bowtie” or “butterfly” antennas.

Larger diameter = more broadband.

Biconical antennas have dipole characteristics. The double cone elements structure contributes to their wider bandwidth. The antenna becomes more broadband as the cone angle increases.

Solid or shell bicones aren’t practical for all operations.

Solid or shell bicone structures can sometimes be too large for most frequencies of operation. Thus, many antennas are designed to mimic the standard biconical geometry, but with altered structure and materials.

The wire bow-tie, for example, reduces the weight and wind resistance of a structure. Although one wire bow-tie would be very narrowband in comparison to actual cone-shaped or triangular sheet antenna, multiple (8+) intersecting wires can achieve the same radiation characteristics of its counterparts.

Bioconical antennas can be used in a number of applications, typically in the VHF and UHF frequency ranges.

JEM Engineering develops low-profile and versatile biconical antennas.

They are often used in electromagnetic interference (EMI) testing either for immunity testing, or emissions testing.

They are more effective than half-wave dipoles, because biconical antennas allow continuous sweeps, allowing for more ease in discovering anomalies.

The LBC-0718, which operates within frequencies from 700 MHz to 18 GHz, weighs about 2 lbs (approx. 0.91 kg) is suitable for SIGINT, signal monitoring, and multi-band communication.

Fractal Antennas, Explained

In previous posts, we discussed how antenna technology is constantly evolving and how one of the main focuses of antenna design is creating powerful antennas in low-profile form factors. This is especially true for applications such as personal communications, small satellite communications, UAV communications, SIGINT and ISR.

In addition to cylindrical dipoles and biconical antennas, fractal antennas can meet the requirements of utilizing the limited available space. Fractal antennas, as the name suggests, are based on the concept of a fractal, which is a recursively generated geometry that has fractional dimensions. While fractals antennas have many complexities that can be discussed at length, in this post, we will examine the basics of fractal antennas.

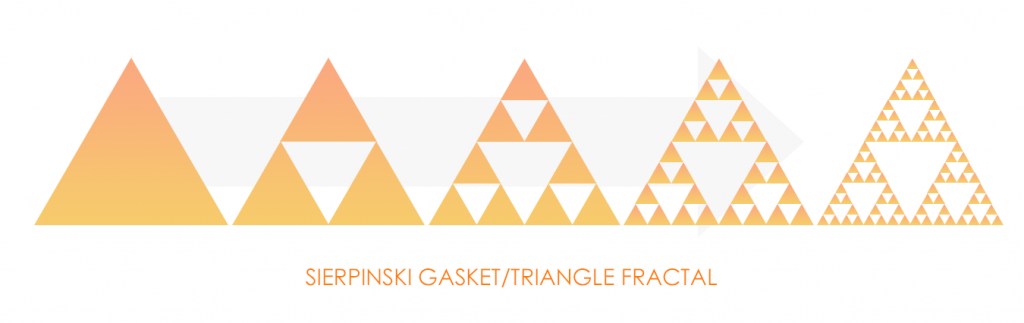

Sierpinski Gasket | Fractal Antennas | JEM Engineering
Fractal Antennas can be classified in two categories: deterministic and random.

Deterministic fractals are those that are generated of several scaled-down rotated copies o themselves. Such fractals can be generated using computer graphics that are repeatedly mapped out by a recursive algorithm. The Sierpinski gasket, for example, is a type of deterministic fractal.

Random fractals also contain elements of randomness that allow simulation of natural phenomena.

Fractal geometries can best be described and generated using an iterative process.

This process can be illustrated graphically, as shown in the illustrations of the Koch snowflake (or Koch fractal loop) and the Minkowski island fractal. The geometry generating process begins with a basic geometry known as the initiator (the triangle and the square, respectively). For Koch snowflake, the middle third of each triangle is replaced with a generator, and for the Minkowski island, each of the four sides of the square is replaced by a generator.

Koch Snowflake | Fractal Antennas | JEM Engineering
Minkowski Island Fractal | Fractal Antennas | JEM Engineering
The trend of the fractal antenna geometry can be determined by observing several iterations of the process.

The final fractal geometry is a curve with an infinitely intricate underlying structure whose building blocks are scaled versions of the initiator.

Quadratic Koch Island | Fractal Antennas | JEM Engineering
Fractal antennas have space-filling properties that can be used to miniaturize classic antenna elements and overcome some of the limitations of small antennas.

Many fractal element antennas use the fractal structure as a virtual combination of capacitors and inductors. The antenna’s many resonances can vary according to the fractal design. The current on the structure has a complex arrangement caused by the inductance and self capacitance. Due to this reactive loading, the antenna elements can be compacted into a smaller space even if they are electrically long. Additionally, fractal antennas do not require additional components, assuming the structure happens to have the desired resonant input impedance.

Not all fractal antennas are ideal for certain applications.

The antenna’s suitability for a particular application can be determined by RF testing and computer search methods. Generally, the advantages of fractal antennas are good multiband performance, wide bandwidth, and small area.

While some researchers claim that fractal antennas have superior performance, some experts claim the contrary.

In 2003, Steven R. Best wrote in A Comparison of the Resonant Properties of Small Space-Filling Fractal Antennas, “that antenna geometry alone, fractal or otherwise, does not uniquely determine the electromagnetic properties of the small antenna.” However, in 2008 Constantine A. Balanis‘s research concluded that fractal antennas performed relatively similarly to the electrically small antennas they were compared against. More recently, in 2011, authors of Small Antenna Handbook Robert C. Hansen and Robert E. Collin reviewed many papers on fractal antennas. The pair concluded that they offer no advantage over fat dipoles, loaded dipoles, or simple loops, and that “nonfractals are always better.”
